1.Crankcase transmission system: three-cylinder crankshaft connecting rod structure 2.water inlet pressure is 0.4mpa 3.Max. water discharge is 3.5L/min 4.Max. diameter of orifice is 0.33mm 5.Max. operating pressure is 420MPa(60000 psi) 6.Continuous operating pressure is 46000-55000psi 7.Power requirement : 15KW, 20HP, 380-415V/50HZ,3 phrase 8Size: 1600*800*900mm 9.Ultrahigh Pressure Supercharging System(Supercharging cylinder, ceramic piston rod, high pressure seal, low pressure seal, high pressure pipeline, one-way valve, etc.) 10.Double-row water filtration system(5Micron, 1Micron, In series connection) 11. Automatic servo control system, output pressure control mode, intelligent start-stop function. 12. Overpressure automatic shutdown and undervoltage automatic protection function. 13. This pump will save 60%-70% electricity than intensifier pump 14.This pump working noise will be lower 15.This pump cutting speed will be 20% faster than intensifier pump at same pressure 16. You needn t to use oil cooler or water cooler.

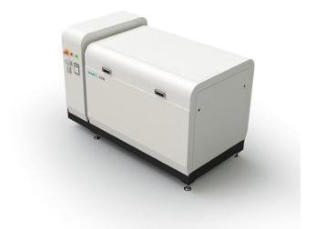

60000 Psi direct drive pump
